Manfaat
Pengarsipan muatan
Juara pasti
Maestro presisi

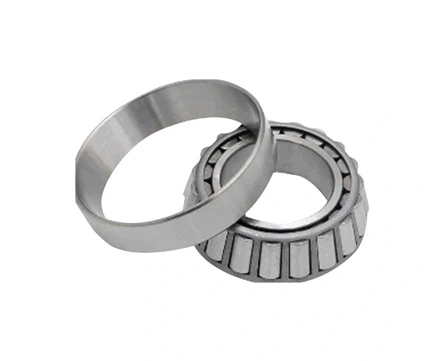

Manfaat

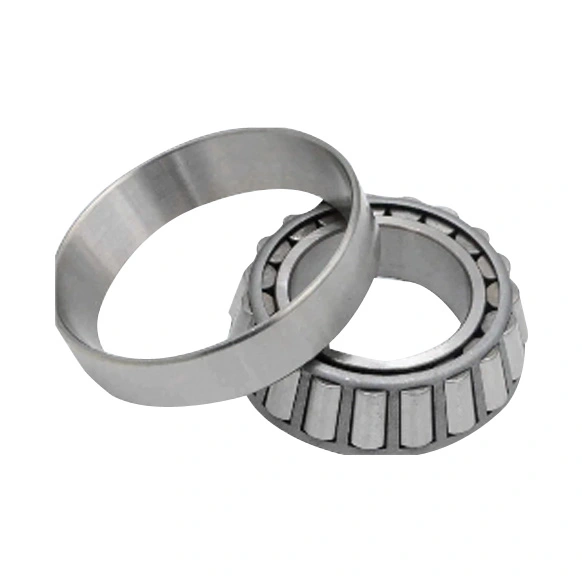

Bantalan rol meruncing inci menawarkan kemampuan membawa beban yang luar biasa. Desain unik mereka memungkinkan mereka untuk menangani beban radial dan aksial, membuatnya ideal untuk aplikasi tugas berat.
Inci iniBantalan rol meruncingTerkenal karena daya tahan mereka. Desain meruncing mengurangi gesekan dan panas, memperpanjang masa pakai bantalan dan memastikan kinerja yang andal bahkan dalam kondisi elastis.
Ukuran inci bantalan rol runcing dirancang untuk presisi. Kemampuan mereka untuk mempertahankan kesejajaran dalam beban berat membuat mereka pilihan yang disukai untuk aplikasi berkecepatan tinggi, memastikan operasi yang lancar dan efisien.
Terakhir, sebagaiBearing bola yang digunakan di mobil, Ukuran inci bantalan rol runcing menawarkan fleksibilitas. Mereka tersedia dalam berbagai ukuran dan konfigurasi, membuatnya cocok untuk berbagai aplikasi industri.

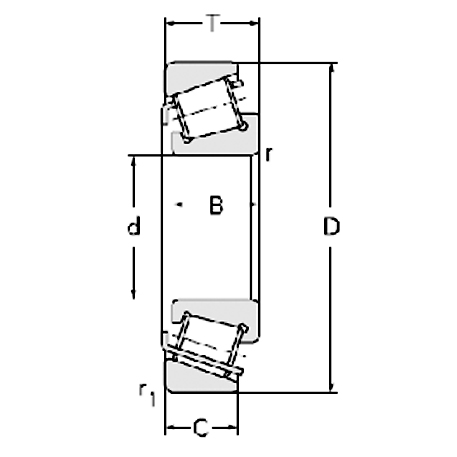

Spesifikasi | Tipe Bearing | Dimensi utama | Nilai muatan dasar | Berat referensi (kg) | |||||||
| (Mm) | (KN) | (KN) | ||||||||
| D | D | T | B | C | R | R | Cr | Cor | W | |
| LM11749/LM11710 | 17.462 | 39.878 | 13.843 | 14.605 | 10.668 | 1.3 | 1.3 | 22.3 | 22.8 | 0.085 |
| Lm1jen/LM11910 | 19.05 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 29 | 30.3 | 0.121 |
| 09067/09195 | 19.05 | 49.225 | 18.034 | 19.05 | 14.288 | 1.3 | 1.3 | 37 | 37.5 | 0.18 |
| 09074/09194 | 19.05 | 49.225 | 23.02 | 21.539 | 17462 | 1.5 | 3.5 | 37.5 | 37 | 0.206 |
| M/ LM12710 | 21.43 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 29.2 | 33.5 | 0.12 |
| LM12649/LM12610 | 21.43 | 50.005 | 17.526 | 18.288 | 13.97 | 1.3 | 1.3 | 39.2 | 40.9 | 0.171 |
| M/ LM12710 | 21.987 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 29.2 | 33.5 | 0.117 |
| 07093/07196 | 23.812 | 50.005 | 13.495 | 14.26 | 9.525 | 1.5 | 1 | 26 | 27.9 | 0.123 |
| L44643/L44610 | 25.4 | 50.292 | 14.224 | 14.732 | 10.668 | 1.3 | 1.3 | 27.6 | 32 | 0.128 |
| M84548/M84510 | 25.4 | 57.15 | 19.431 | 19.431 | 14.732 | 1.5 | 1.5 | 42.5 | 49 | 0.245 |
| 15101/15245 | 25.4 | 62 | 19.05 | 20.638 | 14.288 | 0.8 | 1.3 | 46 | 53 | 0.294 |
| 639297/639154 | 28 | 57.15 | 17.462 | 17.462 | 13.5 | 4 | 1.5 | 41.1 | 47.6 | 0.201 |
| 2689/2631 | 28.575 | 66.421 | 23.812 | 25.433 | 19.05 | 1.3 | 1.3 | 76.5 | 81.8 | 0.412 |
| 02872/02820 | 28.575 | 73.025 | 22.225 | 22.225 | 17.462 | 0.8 | 3.3 | 54.5 | 64.50.481 | |
| L44649/10 | 26.987 | 50.292 | 14.224 | 14.732 | 10.668 | 3.5 | 1.3 | 27.6 | 32 | 0.119 |
| 15106/15250X | 26.987 | 63.5 | 20.638 | 20.638 | 15.875 | 0.8 | 1.5 | 53.8 | 60 | 0.32 |
| L45449/L_45410 | 29 | 50.292 | 14.224 | 14.732 | 10.668 | 3.5 | 1.3 | 28.2 | 35.9 | 0.13 |
| M86649/M88610 | 30.162 | 64.292 | 21.433 | 21.433 | 16.67 | 1.5 | 1.5 | 55.2 | 70.7 | 0.332 |
| M88043/M88010 | 30.162 | 68.262 | 22.225 | 22.225 | 17.462 | 2.3 | : 1.5 | 56.1 | 71 | 0.398 |
| LM67048/LM67010 | 31.75 | 59.131 | 15.875 | 16.764 | 11.811 | SP | 1.3 | 33.9 | 42.5 | 0.177 |
| 15123/15245 | 31.75 | 62 | 18.161 | 19.05 | 14.288 | SP | 1.3 | 46 | 53 | 0.239 |
| 15126/15245 | 31.75 | 62 | 19.05 | 20.638 | 14.288 | 0.8 | 1.3 | 46 | 53 | 0.257 |
| 15123/15250X | 31.75 | 63.5 | 19.749 | 19.05 | 15.875 | SP | 1.5 | 46 | 53 | 0.27 |
| 02475/02420 | 31.75 | 68.262 | 22.225 | 22.225 | 17.462 | 3.5 | 1.5 | 55 | 64 | 0.375 |
| 02476/02420 | 31.75 | 68.262 | 22.225 | 22.225 | 17.462 | 0.8 | 1.5 | 55 | 64 | 0.379 |
| 2580/2520 | 31.75 | 66.421 | 25.4 | 25.357 | 20.638 | 0.8 | 3.3 | 77.5 | 94.4 | 0.39 |
| 2580/2523 | 31.75 | 69.85 | 23.812 | 25.357 | 19.05 | 0.8 | 1.3 | 71 | 84 | 0.451 |
| 14125A/14276 | 31.75 | 69.012 | 19.845 | 19583 | 15.875 | 3.5 | 1.3 | 47 | 56 | 0.354 |
| HM88542/HM88510 | 31.75 | 73.025 | 29.37 | 27.783 | 23.02 | 1.3 | 3.3 | 74 | 100 | 0.621 |
| M880448/m80410 | 33.338 | 68.262 | 22.225 | 22.225 | 17.462 | 0.8 | 1.5 | 55.5 | 70.5 | 0.382 |
| HM88547/HM88510 | 33.33873.025 | 29.37 | 27.783 | 23.02 | 0.8 | 3.3 | 74 | 100 | 0.604 | |
| LM48548/LM48510 | 34.925 | 65.088 | 18.034 | 18.288 | 13.97 | SP | 1.3 | 48.2 | 58.8 | 0.252 |
| LM48548/LM48511 | 34.925 | 65.088 | 20.32 | 18.288 | 16.256 | SP | 1.3 | 48.2 | 58.8 | 0.288 |
| 14137A/14276 | 34.925 | 69.012 | 19.845 | 19.583 | 15.875 | 1.5 | 1.3 | 47 | 56 | 0.329 |
| 14138A/14274 | 34.925 | 69.012 | 19.845 | 19.583 | 15.875 | 3.5 | 3.3 | 47 | 56 | 0.314 |
| 14138A/14276 | 34.925 | 69.012 | 19.845 | 19.583 | 15.875 | 3.5 | 1.3 | 47 | 56 | 0.315 |
| 141 | 34.976 | 72.085 | 22.385 | 19.583 | 18.415 | 1.3 | 2.3 | 47 | 56 | 0.408 |
| HM88649/HM88610 | 34.925 | 72.333 | 25.4 | 25.4 | 19.842 | 2.3 | 2.3 | 63.5 | 83.5 | 0.483 |
| 25877/25821 | 34.925 | 73.025 | 23.812 | 24.608 | 19.05 | 1.5 | 0.8 | 71 | 86 | 0.473 |
| 23690/23620 | 34.925 | 73.025 | 26.988 | 26.975 | 22.225 | 3.5 | 1.5 | 93 | 94.6 | 0.53 |
| 31594/31520 | 34.925 | 76.2 | 29.37 | 28.575 | 23.812 | 1.5 | 3.3 | 80.5 | 96.5 | 0.639 |
| HM89446/10 | 34.925 | 76.2 | 29.37 | 28.575 | 23.02 | 3.5 | 3.3 | 79.6 | 107 | 0.643 |
| L68149/L68110 | 34.987 | 59.131 | 15.875 | 16.764 | 11.938 | SP | 1.3 | 35.4 | 47.8 | 0.173 |
| L68149/L68111 | 34.987 | 59.975 | 15.875 | 16.764 | 11.938 | SP | 1.3 | 35.4 | 47.8 | 0.181 |
| HM89449/HM89410 | 36.512 | 76.2 | 29.37 | 28.575 | 23.02 | 3.5 | 3.3 | 79.8 | 107 | 0.637 |
| JL69349/JL69310 | 38 | 63 | 17 | 17 | 13.5 | SP | 1.3 | 38.5 | 52 | 0.194 |
| LM29748/10 | 65.088 | 18.034 | 18.288 | 13.97 | SP | 1.3 | 42.5 | 55 | 0.226 | |
| LM29749/10 | 38.1 | 65.088 | 18.034 | 18.288 | 13.97 | 2.3 | 1.3 | 42.5 | 55 | 0.239 |
| 13685/13620 | 38.1 | 69.012 | 19.05 | 19.05 | 15.083 | 3.5 | 0.8 | 49 | 61 | 0.296 |
| 2788/2720 | 38.1 | 76.2 | 23.812 | 25.654 | 19.05 | 3.5 | 3.3 | 73.5 | 91 | 0.499 |
| 2789/2720 | 39.688 | 76.2 | 23.812 | 25.654 | 19.05 | 3.5 | 3.3 | 73.5 | 91 | 0.479 |
| 2789/2729 | 39.688 | 76.2 | 23.812 | 25.654 | 19.05 | 3.5 | 0.8 | 73.5 | 91 | 0.485 |
| 3382/3320 | 39.688 | 80.167 | 29.37 | 30.391 | 23.812 | 3.5 | 3.3 | 115 | 129 | 0.65 |
| LM300849/11 | 40.987 | 67.975 | 17.5 | 18 | 13.5 | SP | 1.5 | 43.5 | 58 | 0.242 |
| 18590/18520 | 41.275 | 73.025 | 16.667 | 17.462 | 12.7 | 3.5 | 1.5 | 44.5 | 54 | 0.285 |
| _ M501349/LM501310 | 41.275 | 73.431 | 19.558 | 19.812 | 14.732 | 3.5 | 0.8 | 54.5 | 67 | 0.334 |
| M802048/M802010 | 41.275 | 82.55 | 26.543 | 26.543 | 20.193 | 3.5 | 1.3 | 78.5 | 102 | 0.636 |
| 25577/25522 | 42.875 | 83.058 | 23.876 | 25.4 | 19.114 | 3.5 | 2 | 90.3 | 110.7 | 0.58 |
| 25577/25523 | 42.875 | 82.931 | 26.988 | 25.4 | 22.225 | 3.5 | 2.3 | 76.5 | 99 | 0.629 |
| 18685/18620 | 44.45 | 79.375 | 17.462 | 17.462 | 13.495 | 2.8 | 1.5 | 47.1 | 59.1 | 0.345 |
| 25580/25520 | 44.45 | 82.931 | 23.812 | 25.4 | 19.05 | 3.5 | 0.8 | 78 | 100 | 0.554 |
| 25581/25520 | 44.45 | 82.931 | 23.812 | 25.4 | 19.05 | 0.5 | 0.8 | 78 | 100 | 0.558 |
| 3578/3525 | 44.45 | 87.312 | 30.162 | 30.886 | 3.5 | 3.3 | 113 | 134 | 0.77 | |
| //HM803110 | 44.45 | 88.9 | 30.612 | 29.37 | 23.02 | 3.5 | 3.3 | 96.5 | 129 | 0.835 |
| 3782/3720 | 44.45 | 93.264 | 30.162 | 30.302 | 23.812 | 3.5 | 3.3 | 103 | 136 | 0.97 |
| //HM903210 | 44.45 | 95.25 | 30.958 | 28.575 | 22.225 | 3.5 | 0.8 | 100 | 122 | 1.024 |
| 527/522 | 44.45 | 101.6 | 34.925 | 36.068 | 26.988 | 3.5 | 2.3 | 131 | 159 | 1.365 |
| 59175/59412 | 44.45 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 3.3 | 167 | 202 | 1.54 |
| JW4549/JW4510 | 45 | 95 | 29 | 26.5 | 20 | 2.5 | 2.5 | 118 | 114 | 0.9 |
| 17887/17831 | 45.23 | 79.985 | 19.842 | 20.638 | 15.08 | 2 | 1.3 | 61.3 | 78.4 | 0.397 |
| LM102949/LM102910 | 45.242 | 73.431 | 19.558 | 19.812 | 15.748 | 3.5 | 0.8 | 47 | 70.5 | 0.301 |
| LM603049/LM603011 | 45.242 | 77.788 | 19.842 | 19.842 | 15.08 | 3.5 | 0.8 | 56 | 71 | 0.368 |
| LM603049/LM603012 | 45.242 | 77.788 | 21.43 | 19.842 | 16.667 | 3.5 | 0.8 | 56 | 71 | 0.386 |
| 25590/25520 | 45.618 | 82.931 | 23.812 | 25.4 | 19.05 | 3.5 | 0.8 | 76.5 | 99 | 0.546 |
| 25590/25523 | 45.618 | 82.931 | 26.988 | 25.4 | 22.225 | 3.5 | 2.3 | 76.5 | 99 | 0.591 |
| M804049/M804010 | 47.625 | 88.9 | 25.4 | 25.4 | 19.05 | 3.5 | 3.3 | 86 | 107 | 0.673 |
| HM804846/HM804810 | 47.625 | 95.25 | 30.162 | 29.37 | 23.02 | 3.5 | 3.3 | 106 | 143 | 0.98 |
| 55187/55437 | 47.625 | 111.125 | 30.162 | 26.909 | 20.638 | 3.5 | 3.3 | 92.5 | 110 | 1.331 |
| 55187/55443 | 47.625 | 112.712 | 30.162 | 26.909 | 20.638 | 3.3 | 92.5 | 110 | 1.37 | |
| HM807044/HM807010 | 49.212 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 3.3 | 139 | 192 | 1.538 |
| LM503349/LM503310 | 49.987 | 74.975 | 18 | 18 | 14 | 2.3 | 1.5 | 51 | 71.5 | 0.296 |
| 28579/28521 | 49.987 | 92.075 | 24.608 | 25.4 | 19.845 | 2.3 | 0.8 | 84.5 | 117 | 0.712 |
| JLM104948/JLM104910 | 50 | 82 | 21.5 | 21.5 | 17 | 3 | 0.5 | 71 | 96 | 0.435 |
| Jm70449/jm704610 | 50 | 84 | 22 | 22 | 17.5 | 3.5 | 1.5 | 96.5 | 104.5 | 0.467 |
| //JM205110 | 50 | 90 | 28 | 28 | 23 | 3 | 2.5 | 104 | 136 | 0.753 |
| JW5049/JW5010 | 50 | 105 | 37 | 29 | 22 | 3 | 3 | 203 | 223 | 1.23 |
| 368 362A | 50.8 | 88.9 | 20.638 | 22.225 | 16.513 | 1.5 | 1.3 | 73 | 85 | 0.507 |
| 368A/362A | 50.8 | 88.9 | 20.638 | 22.225 | 16.513 | 3.5 | 1.3 | 73 | 85 | 0.504 |
| 28580/28521 | 50.8 | 92.075 | 24.608 | 25.4 | 19.845 | 3.5 | 0.8 | 84.5 | 117 | 0.703 |
| 3775/3720 | 50.8 | 93.264 | 30.162 | 30.302 | 23.812 | 0.8 | 3.3 | 103 | 136 | 0.862 |
| 3780/3720 | 50.8 | 93.264 | 30.162 | 30.302 | 23.812 | 3.5 | 3.3 | 103 | 136 | 0.858 |
| HM807046/HM807010 | 50.8 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 3.3 | 139 | 192 | 1.483 |
| 28584/28521 | 52.388 | 92.075 | 24.608 | 25.4 | 19.845 | 3.5 | 0.8 | 84.5 | 117 | 0.682 |
| 55206/55437 | 52.388 | 111.125 | 30.162 | 26.909 | 20.638 | 3.5 | 2 | 92.5 | 110 | 1.251 |
| HM806649/HM806610 | 53.975 | 88.9 | 19.05 | 19.05 | 13.492 | 2.3 | 2 | 62.9 | 86.8 | 0.426 | 53.975 | 95.25 | 27.783 | 28.575 | 22.225 | 1.5 | 0.8 | 120 | 161 | 0.79 |
| 389A/383A | 53.975 | 100 | 21 | 21.946 | 17.826 | 0.8 | 2 | 82.5 | 103 | 0.717 |
| HM807049/HM807010 | 53.975 | 104.775 | 36.512 | 36.512 | 28.575 | 3.5 | 3.3 | 139 | 192 | 1.4 |
| Jm506849/jm506810 | 55 | 90 | 23 | 23 | 18.5 | 1.5 | 0.5 | 80 | 113.2 | 0.551 |
| JM207049/JM2070101 | 55 | 95 | 29 | 29 | 23.5 | 1.5 | 2.5 | 111 | 152 | 0.85 |
| 28680/28622 | 55.562 | 97.63 | 24.608 | 24.608 | 19.446 | 3.5 | 0.8 | 89 | 129 | 0.769 |
| 387A/382A | 57.15 | 96.838 | 21 | 21.946 | 15.875 | 3.5 | 0.8 | 80.5 | 100 | 0.599 |
| 28682/28621 | 57.15 | 96.838 | 24.608 | 24.608 | 19.446 | 3.5 | 0.8 | 89.6 | 131 | 0.714 |
| 462/453X | 57.15 | 104.775 | 30.162 | 29.317 | 24.605 | 2.3 | 3.3 | 116 | 149 | 1.07 |
| 39581/39520 | 57.15 | 112.712 | 30.162 | 30.162 | 23.812 | 8 | 0.8 | 142 | 202 | 1.38 |
| //JLM508710 | 60 | 95 | 24 | 24 | 19 | 5 | 2.5 | 86.5 | 125 | 0.63 |
| 28985/28920 | 60.325 | 101.6 | 25.4 | 25.4 | 19.845 | 3.5 | 3.3 | 92.1 | 137.2 | 0.799 |
| 65237/65500 | 60.325 | 127 | 44.45 | 4445 | 34.925 | 3.5 | 3.3 | 199 | 258 | 2.59 |
| //HM813810 | 61.912 | 127 | 36.512 | 36.512 | 26.988 | 3.5 | 3.3 | 179 | 256 | 2.13 |
| H715334/H715311 | 61.912 | 136.525 | 46.038 | 46.038 | 36.512 | 3.5 | 3.3 | 233 | 370 | 3.471 |
| 29585/29520 | 63.5 | 107.95 | 25.4 | 25.4 | 19.05 | 3.5 | 3.3 | 90 | 138 | 0.942 |
| 395 394A | 63.5 | 110 | 22 | 21.996 | 18.824 | 3.5 | 1.3 | 85 | 113 | 0.791 |
| HM212047/11 | 63.5 | 122.238 | 38.1 | 38.354 | 29.718 | 7 | 3.5 | 193.1 | 254.3 | 1.938 |
| 39585/39520 | 63.5 | 112.712 | 30.162 | 30.162 | 23.812 | 3.5 | 0.8 | 142 | 202 | 1.258 |
| Jm5101// JM511910 | 65 | 110 | 28 | 28 | 22.5 | 3 | 2.5 | 120 | 173 | 1.062 |
| 29590/29520 | 66.675 | 107.95 | 25.4 | 25.4 | 19.05 | 3.5 | 3.3 | 131 | 161 | 0.84 |
| 395S/394A | 66.675 | 110 | 22 | 21.996 | 18.824 | 3.5 | 1.3 | 85 | 113 | 0.76 |
| 395A/394A | 66.675 | 110 | 22 | 21.996 | 18.824 | 0.8 | 1.3 | 85 | 113 | 0.786 |
| 3984/3920 | 66.675 | 112.712 | 30.162 | 30.048 | 23.812 | 3.5 | 3.3 | 120 | 173 | 1.168 |
| 3994/3920 | 66.675 | 112.712 | 30.162 | 30.048 | 23.812 | 5.5 | 3.3 | 120 | 173 | 1.16 |
| 39590/39520 | 66.675 | 112.712 | 30.162 | 30.162 | 23.812 | 3.5 | 3.3 | 142 | 202 | 1.181 |
| HM212049/10 | 66.675 | 122.238 | 38.1 | 38.354 | 29.718 | 3.5 | 3.5 | 193.1 | 254.3 | 1.84 |
| HM212049/11 | 66.675 | 122.238 | 38.1 | 38.354 | 29.718 | 3.5 | 3.3 | 193.1 | 254.3 | 1.84 |
| 642/632 | 68.262 | 136.525 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 233 | 298 | 2.67 |
| 9278/9220 | 68.262 | 161.925 | 49.212 | 46.038 | 31.75 | 3.5 | 3.3 | 248 | 490 | 4.52 |
| H913849/H913810 | 69.85 | 146.05 | 41.275 | 39.688 | 25.4 | 3.5 | 3.3 | 193 | 225 | 2.92 |
| 33281/33462 | 71.438 | 117.475 | 30.162 | 30.162 | 23.812 | 3.5 | 3.3 | 119 | 179 | 1.231 |
| //JLM813010 | 70 | 110 | 26 | 25 | 20.5 | 1 | 2.5 | 98.5 | 1520.908 | |
| //JM612910 | 70 | 115 | 29 | 29 | 23 | 3 | 2.5 | 126 | 177 | 1.162 |
| JW7049/JW7010 | 70 | 140 | 39 | 35.5 | 27 | 3 | 3 | 189 | 257 | 2.63 |
| 33287/33462 | 73.025 | 117.475 | 30.162 | 30.162 | 23.812 | 3.5 | 3.3 | 119 | 179 | 1.17 |
| 29685/29620 | 73.025 | 112.712 | 25.4 | 25.4 | 19.05 | 3.5 | 3.3 | 96 | 152 | 0.893 |
| //JM714210 | 75 | 120 | 31 | 29.5 | 25 | 3 | 2.5 | 129 | 198 | 1.299 |
| 42687/42620 | 76.2 | 127 | 30.162 | 31.001 | 22.225 | 3.5 | 3.3 | 134 | 195 | 1.468 |
| 42688/42620 | 76.2 | 127 | 30.162 | 31.001 | 22.225 | 6.4 | 3.3 | 134.0 | 195 | 1.448 |
| 495A/493 | 76.2 | 136.525 | 30.162 | 29.769 | 22.225 | 3.5 | 3.3 | 130 | 192 | 1.82 |
| 9380/21 | 76.2 | 161.925 | 47.625 | 48.26 | 38.1 | 3.5 | 3.3 | 273 | 391 | 4.694 |
| 34306/34478 | 77.788 | 121.442 | 24.608 | 23.012 | 17.462 | 3.5 | 2 | 89 | 124 | 0.928 |
| //JM515610 | 80 | 130 | 35 | 34 | 28.5 | 3 | 2.5 | 166 | 251 | 1.763 |
| 495/493 | 82.55 | 136.525 | 30.162 | 29.769 | 22.225 | 3.5 | 3.3 | 130 | 192 | 1.63 |
| 580/572 | 82.55 | 139.992 | 36.512 | 36.098 | 28.575 | 3.5 | 3.3 | 175 | 260 | 2.178 |
| 498. 000/492A | 84.138 | 133.35 | 30.162 | 29.769 | 22.225 | 3.5 | 3.3 | 130 | 192 | 1.45 |
| 498/493 | 84.138 | 136.525 | 30.162 | 29.769 | 22.225 | 3.5 | 3.3 | 130 | 192 | 1.59 |
| //JM716610 | 85 | 130 | 30 | 29 | 24 | 3 | 2.5 | 142 | 228 | 1.36 |
| //JHM516810 | 85 | 140 | 39 | 38 | 31.5 | 3 | 2.5 | 282 | 339 | 2.27 |
| 749/742 | 85.026 | 150.089 | 45.45 | 46.672 | 36.512 | 3.5 | 3.3 | 265 | 370 | 3.18 |
| 497. 000/492A | 85.725 | 133.35 | 30.162 | 29.769 | 22.225 | 3.5 | 3.3 | 130 | 192 | 1.421 |
| 27687/27620 | 82.55 | 125.412 | 25.4 | 25.4 | 19.845 | 3.5 | 1.5 | 102 | 164 | 1.095 |
| //HM518410 | 88.9 | 152.4 | 39.688 | 39.688 | 30.162 | 6.4 | 3.3 | 258 | 373.1 | 2.832 |
| 6580/6535 | 88.9 | 161.925 | 53.975 | 55.1 | 42.862 | 3.5 | 3.3 | 319 | 477 | 4.72 |
| //HM218210 | 89.975 | 146.975 | 40 | 40 | 32.5 | 7 | 3.5 | 235 | 351 | 2.499 |
| JL819349/JL819310 | 95 | 135 | 20 | 20 | 14 | 5 | 2 | 76.9 | 133 | 0.85 |
| 594/592 | 95.25 | 152.4 | 39.688 | 36.332 | 33.338 | 3.5 | 3.3 | 183 | 285 | 2.59 |
| 683/672 | 95.25 | 168.275 | 41.275 | 41.275 | 30.162 | 3.5 | 3.3 | 223 | 345 | 3.71 |
| 42381/42584 | 96.838 | 148.43 | 28.575 | 28.971 | 21.433 | 3.5 | 3 | 140 | 218 | 1.683 |
| 685/672 | 98.425 | 168.275 | 41.275 | 41.275 | 30.162 | 3.5 | 3.3 | 223 | 345 | 3.524 |
| HM220149/HM220110 | 99.975 | 156.975 | 42 | 42 | 34 | 8 | 3.5 | 243 | 391 | 2.9 |
| 52400/52618 | 101.6 | 157.162 | 36.512 | 36.116 | 26.195 | 3.5 | 3.3 | 191 | 310 | 2.27 |
| 37425/37625 | 107.95 | 158.75 | 23.02 | 21.438 | 15.875 | 3.5 | 3.3 | 102 | 165 | 1.374 |
| 37431/37625 | 109.538 | 158.75 | 23.02 | 21438 | 15.875 | 3.5 | 3.3 | 102 | 165 | 1.31 |
| //JM720210 | 100 | 155 | 36 | 35 | 28 | 3 | 2.5 | 231 | 355 | 2.36 |
| //JHM720210 | <Td x:num = 100> 100160 | 41 | 40 | 32 | 3 | 2.5 | 331 | 416 | 3.064 | |
| //JHM522610 | 110 | 180 | 47 | 46 | 38 | 3 | 2.5 | 310 | 490 | 4.63 |
| 64450/64700 | 114.3 | 117.8 | 41.275 | 41.275 | 30.162 | 3.5 | 3.3 | 232 | 375 | 3.5 |
| 68462/68712 | 117.475 | 180.975 | 34.925 | 31.75 | 25.4 | 3.5 | 3.3 | 174 | 254 | 2.78 |
| JP12049/JP12010 | 120 | 170 | 27 | 25 | 19.5 | 3 | 2.5 | 196 | 238 | 1.705 |
Diagram
