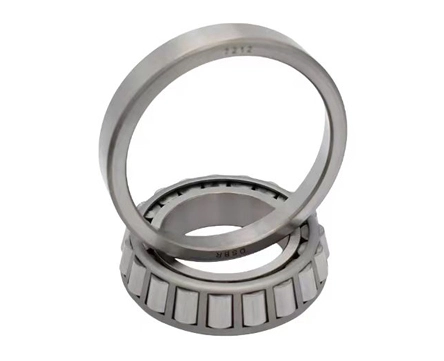

Fitur
Memastikan keandalan tinggi dalam operasi.
Memberikan ketahanan beban kejut yang sangat baik.
IniBantalan rol tirus metrikDirancang untuk kaku tinggi dan akurasi berlari.
Fitur
Spesifikasi | Tipe Bearing | Dimensi utama | Nilai muatan dasar | Berat referensi (kg) | ||||||||
| Baru | Asli | (Mm) | (KN) | (KN) | |||||||
| Tipe | Tipe | D | D | T | B | C | R | R | Cr | Cor | W |
| 33206 | 3007206 | 30 | 62 | 25 | 25 | 19.5 | 1 | 1 | 63.8 | 75.4 | 0.342 |
| 33207 | 3007207 | 35 | 72 | 28 | 28 | 22 | 1.5 | 1.5 | 82.6 | 101.7 | 0.515 |
| 33208 | 3007208 | 40 | 80 | 32 | 32 | 25 | 1.5 | 1.5 | 105.8 | 135.5 | 0.715 |
| 33209 | 3007209 | 45 | 85 | 32 | 32 | 25 | 1.5 | 1.5 | 109.5 | 145.1 | 0.771 |
| 33210 | 3007210 | 50 | 90 | 32 | 32 | 24.5 | 1.5 | 1.5 | 112.9 | 154.6 | 0.825 |
| 33211 | 3007211 | 55 | 100 | 35 | 35 | 27 | 2 | 1.5 | 143.1 | 196.7 | 1.15 |
| 33212 | 3007212 | 60 | 110 | 38 | 38 | 29 | 2 | 1.5 | 165.8 | 231.4 | 1.51 |
| 33213 | 3007213 | 65 | 120 | 41 | 41 | 32 | 2 | 1.5 | 202.2 | 281.6 | 1.99 |
| 33214 | 3007214 | 70 | 125 | 41 | 41 | 32 | 2 | 1.5 | 208.6 | 298.3 | 2.100 |
| 33215 | 3007215 | 75 | 130 | 41 | 41 | 31 | 2.0 | 1.5 | 207.1 | 299.7 | 2.17 |
| 33216 | 3007216 | 80 | 140 | 46 | 46 | 35 | 2.5 | 2 | 245.7 | 361.8 | 2.83 |
| 33217 | 3007217 | 85 | 150 | 49 | 49 | 37 | 2.5 | 2 | 281.7 | 415.7 | 3.52 |
| 33218 | 3007218 | 90 | 160 | 55 | 55 | 42 | 2.5 | 2.0 | 330.6 | 499.7 | 4.55 |
| 33219 | 3007219 | 95 | 170 | 58 | 58 | 44 | 3.0 | 2.5 | 377.4 | 568.4 | 5.48 |
| 33220 | 3007220 | 100 | 180 | 63 | 63 | 48 | 3.0 | 2.5 | 436.5 | 666.2 | 6.71 |
| 33221 | 3007221 | 105 | 190 | 68 | 68 | 52 | 3 | 2.5 | 497.8 | 770.5 | 8.12 |
| 6-7805Y | 26 | 57.15 | 17.462 | 17.462 | 14 | 3.2 | 1.5 | 41.1 | 47.6 | 0.222 | |
| 30309X2B | 27709E | 45 | 100 | 32 | 29 | 20 | 1.5 | 1.5 | 63 | 83 | 1.04 |
| 306/47 | 7909 | 47 | 100 | 43 | 43 | 37 | 2 | 1.5 | 108 | 169 | 1.66 |
| 3002 | 55 | 130 | 36 | 33 | 22 | 3 | 2.5 | 171 | 185.6 | 2.115 | |
| 462/453X | 7911 | 57.15 | 104.775 | 30.162 | 29.317 | 24.605 | 2.3 | 3.3 | 109 | 144 | 1.043 |
| 33113X2 | 7813E | 65 | 110 | 30.5 | 30 | 24 | 3 | 2 | 126 | 185 | 1.14 |
| 30613 | 7713E | 65 | 1 50 | 54 | 54 | 44.5 | 3 | 3 | 269 | 390 | 4.432 |
| 33114X2 | 7814E | 70 | 120 | 33 | 33 | 27 | 2 | 1.5 | 152 | 209 | 1.43 |
| 30615 | 7815E | 75 | 135 | 44.5 | 45 | 36.5 | 2 | 2 | 235.1 | 349.9 | 2.694 |
| 33216X2 | 7816E | 80 | 140 | 45 | 45 | 36.5 | 2.5 | 2 | 246 | 366 | 2.743 |

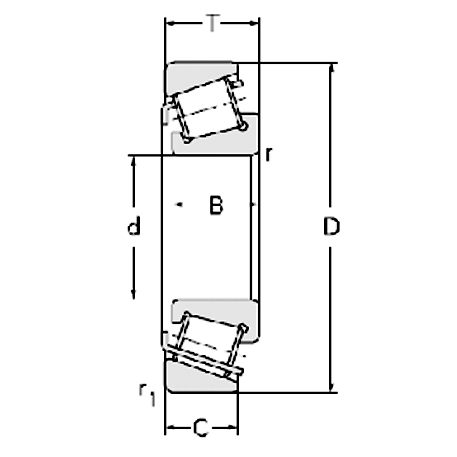

Diagram
