Fitur
Mengurangi risiko kegagalan dini.
Memberikan ketahanan terhadap kelelahan kontak bergulir yang sangat baik.
Dirancang untuk kapasitas membawa beban tinggi.
Fitur
Spesifikasi | Tipe Bearing | Dimensi utama | Nilai muatan dasar | Berat referensi (kg) | ||||||||
| Baru | Asli | (Mm) | (KN) | (KN) | |||||||
| Tipe | Tipe | D | D | T | B | C | R | R | Cr | Cor | W |
| 33108 | 3007708 | 40 | 75 | 26 | 26 | 20.5 | 1.5 | 1.5 | 84.7 | 110.3 | 0.496 |
| 33109 | 3007709 | 45 | 80 | 26 | 26 | 20.5 | 1.5 | 1.5 | 87.1 | 117.2 | 0.535 |
| 33110 | 3007710 | 50 | 85 | 26 | 26 | 20.5 | 1.5 | 1.5 | 89.3 | 124.1 | 0.572 |
| 33111 | 3007711 | 55 | 95 | 30 | 30 | 23 | 1.5 | 1.5 | 114.5 | 164.8 | 0.843 |
| 33112 | 3007712 | 60 | 100 | 30 | 30 | 23 | 1.5 | 1.5 | 117.1 | 173.2 | 0.895 |
| 33113 | 3007713 | 65 | 110 | 34 | 34 | 26.5 | 1.5 | 1.5 | 142.8 | 220.4 | 1.3 |
| 33114 | 3007714 | 70 | 120 | 37 | 37 | 29 | 2 | 1.5 | 172.1 | 267 | 1.7 |
| 33115 | 3007715 | 75 | 125 | 37 | 37 | 29 | 2 | 1.5 | 176.1 | 279.6 | 1.78 |
| 33116 | 3007716 | 80 | 130 | 37 | 37 | 29 | 2 | 1.5 | 179.6 | 292.3 | 1.870 |
| 33117 | 3007717 | 85 | 140 | 41 | 41 | 32 | 2.5 | 2 | 215.7 | 354.2 | 2.43 |
| 33118 | 3007718 | 90 | 150 | 45 | 45 | 36 | 2.5 | 2 | 252.1 | 414.7 | 3.13 |
| 33119 | 3007719 | 95 | 160 | 49 | 49 | 38 | 2.5 | 2 | 298.9 | 498.2 | 3.94 |
| 33120 | 3007720 | 100 | 165 | 52 | 52 | 40 | 2.5 | 2.0 | 309.4 | 529.2 | 4.31 |
| 33121 | 3007721 | 105 | 175 | 56 | 56 | 44 | 2.5 | 2.0 | 351.8 | 607.8 | |
| 33122 | 3007722 | 110 | 180 | 56 | 56 | 43 | 2.5 | 2.0 | 373.2 | 639.1 | 5.5 |
| 33124 | 3007724 | 120 | 200 | 62 | 62 | 48 | 2.5 | 2 | 448.2 | 779.1 | 7.68 |

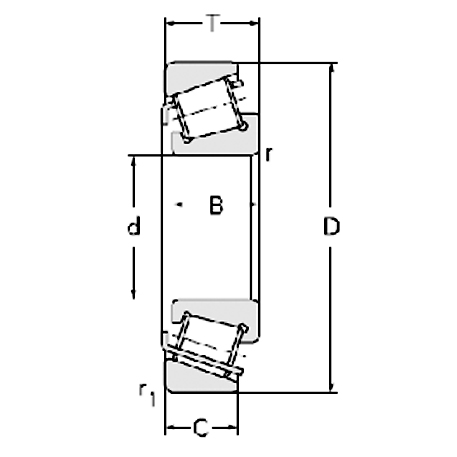

Diagram
