Fitur
Memberikan kecepatan rotasi yang sangat baik.
Dirancang untuk kaku dan kekuatan tinggi.
Memastikan kinerja yang konsisten dalam berbagai suhu.
Fitur
Spesifikasi | Tipe Bearing | Dimensi utama | Nilai muatan dasar | Berat referensi (kg) | ||||||||
| Baru | Asli | (Mm) | (KN) | (KN) | |||||||
| Tipe | Tipe | D | D | T | B | C | R | R | Cr | Cor | W |
| 33008 | 3007108 | 40 | 68 | 22 | 22 | 18 | 1 | 1 | 60.2 | 79.6 | 0.306 |
| 33009 | 3007109 | 45 | 75 | 24 | 24 | 19 | 1 | 1 | 72.6 | 100.4 | 0.398 |
| 33010 | 3007110 | 50 | 80 | 24 | 24 | 19 | 1 | 1 | 76.8 | 110.9 | 0.433 |
| 33011 | 3007111 | 55 | 90 | 27 | 27 | 21 | 1.5 | 1.5 | 94.9 | 144.7 | 0.651 |
| 33012 | 3007112 | 60 | 95 | 27 | 27 | 21 | 1.5 | 1.5 | 96.7 | 151.1 | 0.691 |
| 33013 | 3007113 | 65 | 100 | 27 | 27 | 21 | 1.5 | 1.5 | 98.1 | 157.7 | 0.732 |
| 33014 | 3007114 | 70 | 110 | 31 | 31 | 25.5 | 1.5 | . 1.5 | 134.4 | 220.4 | 1.07 |
| 33015 | 3007115 | 75 | 115 | 31 | 31 | 25.5 | 1.5 | 1.5 | 133.1 | 221.2 | 1.12 |
| 33017 | 3007117 | 85 | 130 | 36 | 36 | 29.5 | 1.5 | 1.5 | 180.4 | 305.5 | 1.69 |
| 33018 | 3007118 | 90 | 140 | 39 | 39 | 32.5 | 2.0 | 1.5 | 232.6 | 388.6 | 2.2 |
| 33019 | 3007119 | 95 | 145 | 39 | 39 | 32.5 | 2.0 | 1.5 | 231 | 389.9 | 2.26 |
| 33020 | 3007120 | 100 | 150 | 39 | 39 | 32.5 | 2.0 | 1.5 | 229.5 | 391.2 | 2.33 |
| 33021 | 3007121 | 105 | 160 | 43 | 43 | 34 | 2.5 | 2.0 | 257.4 | 437.4 | 2.97 |
| 33022 | 3007122 | 110 | 170 | 47 | 47 | 37 | 2.5 | 2.0 | 288.7 | 3.74 | |
| 33024 | 3007124 | 120 | 180 | 48 | 48 | 38 | 2.5 | 2.0 | 298.2 | 535.1 | 4.07 |

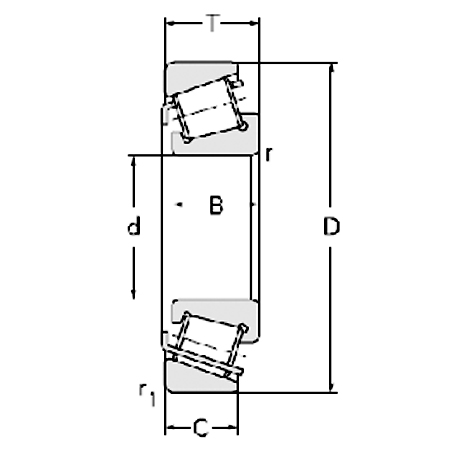

Diagram
